破碎系统设备 齿辊式破碎机
结构特点
适用于抗压强度较低的粉质砂岩、页岩、粘土和冻土等粘性物料的破碎。工艺流程简单,解决了物料的粘结和堵塞问题,维修保养方便,生产安全可靠。

辊子间距可调节,满足不同出料粒度的需要。
The gap between rollers is adjustable to cater to the output granular size of different materials
辊齿磨损到一定程度,可调整两辊间隙以保证产品粒度,并可方便地更换辊皮。
In case the roller teeth are worn, output granular size can be guaranteed by adjusting the roller gap. The
toothed rollers sleeve are easily replaceable;
移动辊的轴承座可做水平移动,当有不能破碎的异物进机时,将异物排出,保护机器不受损伤。
The bearing housing of the movable roller can slide horizontally to expel foreign matter thus protecting the
machine from damages;
柔性树脂帘可防止含水粘性物料粘附在腔体内部。
The flexible resin curtain can prevent viscous material from adhering to the inner cavity of the machine;
刮泥装置可防止物料粘辊,使齿面清洁,保持应有的剪切和挤压作用。
The viscous material scraping device prevents material from sticking to the rollers, which keeps the toothed
surface clean so that its shearing and pressing force is retained;
四个主轴承既可单独润滑,又可集中润滑。
Alternative lubrication methods are available for the four main bearings - either separate lubrication or
centralized grease lubrication.

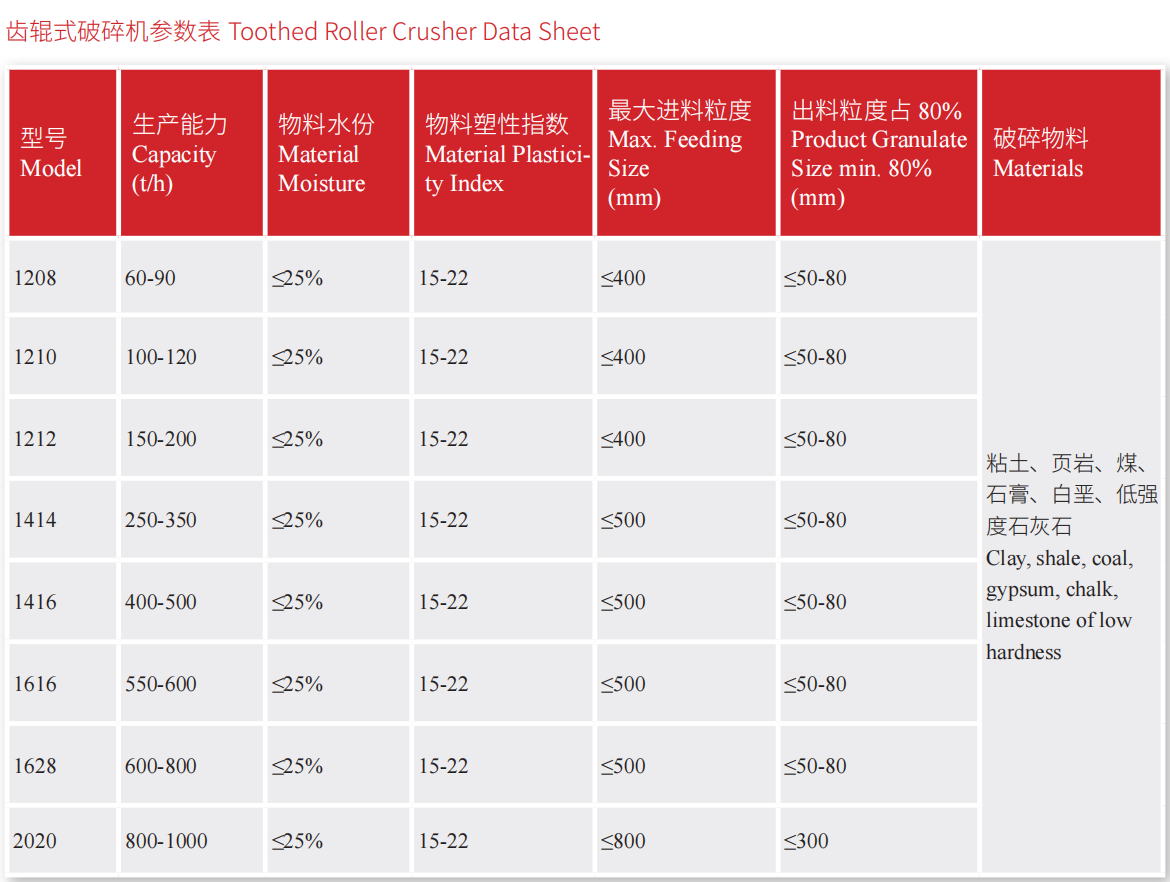

技术参数
